3d Printer Plastic Filament Extruder Machine 10-30kg/Hr Machine Output

Plastic 3D Printer Filament Extruder Machine

Features:

1, Material:PLA/ABS/HIPS

2, Diameter :1.75mm-3.0mm

3, Shape:round

4, Color:bule,red,orange,yellow,green .

5, Usage:be applied to a variety of 3D printer, Makerbot, Mendel, Prusa, Huxley, BFB series, etc..

Specificaitons as below:

AF-45 filament making machine configurations and quotation:

Φ45extruder (one set)

50kg hopper dryer: one set

Auto-loader: one set

Screw diameter:45mm

Screw L/D: 28:1

Screw structure: special

Reducer unit (one set)

Control power:11kw

Use China named brand DONGGUAN MOTOR control

Control style: frequency conversion (TAIWAN DELTA)

Belt transmission between motor and gear box.

Thermostat zones: 5 zones 2 kw for each zone

Use stainless steel heater

Use Japan RKC temperature controller

Cooling zones: 3 zones 0.18 kw for each zone

Used TAIWAN named brand blower

Electrical control box (one set)

Flange: one set

Extruding die: one set

Roundfilamentdiameter: Ø1.75-3.0mm

6m stainless steel cooling water tank:one set

Water tank stand: one set

Double shafthaul off unit: one set

Haul off control power:0.75kw*2

Control style:frequency conversion

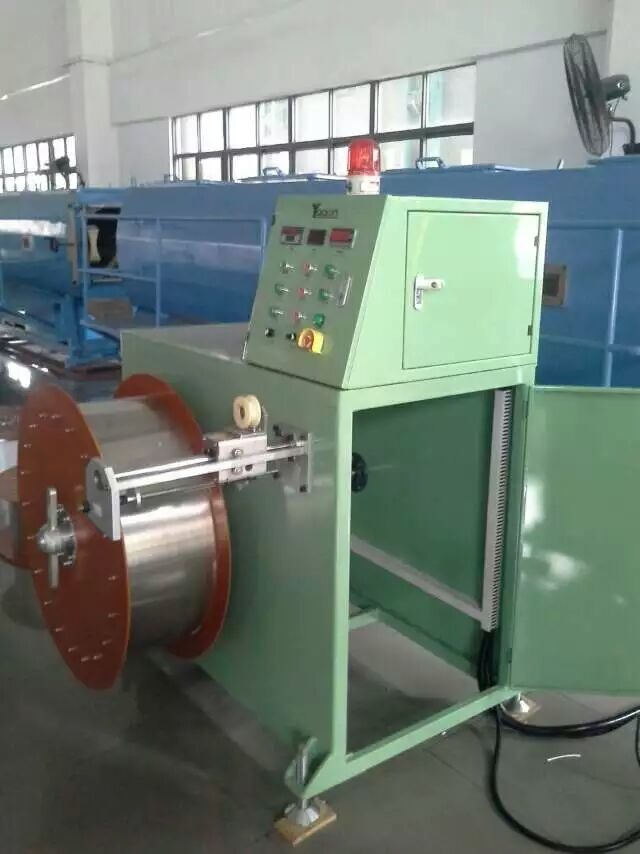

Winding unit:oneset

Work shaft:2

Motor power: 0.75KW

Control style:moment motor control

Encoder can control the length of winding, it will stop and warning when winding enough.

plastic filament maker

3d printer filament making machine

3d Printer Plastic Filament Extruder Machine 10-30kg/Hr Machine Output Images
